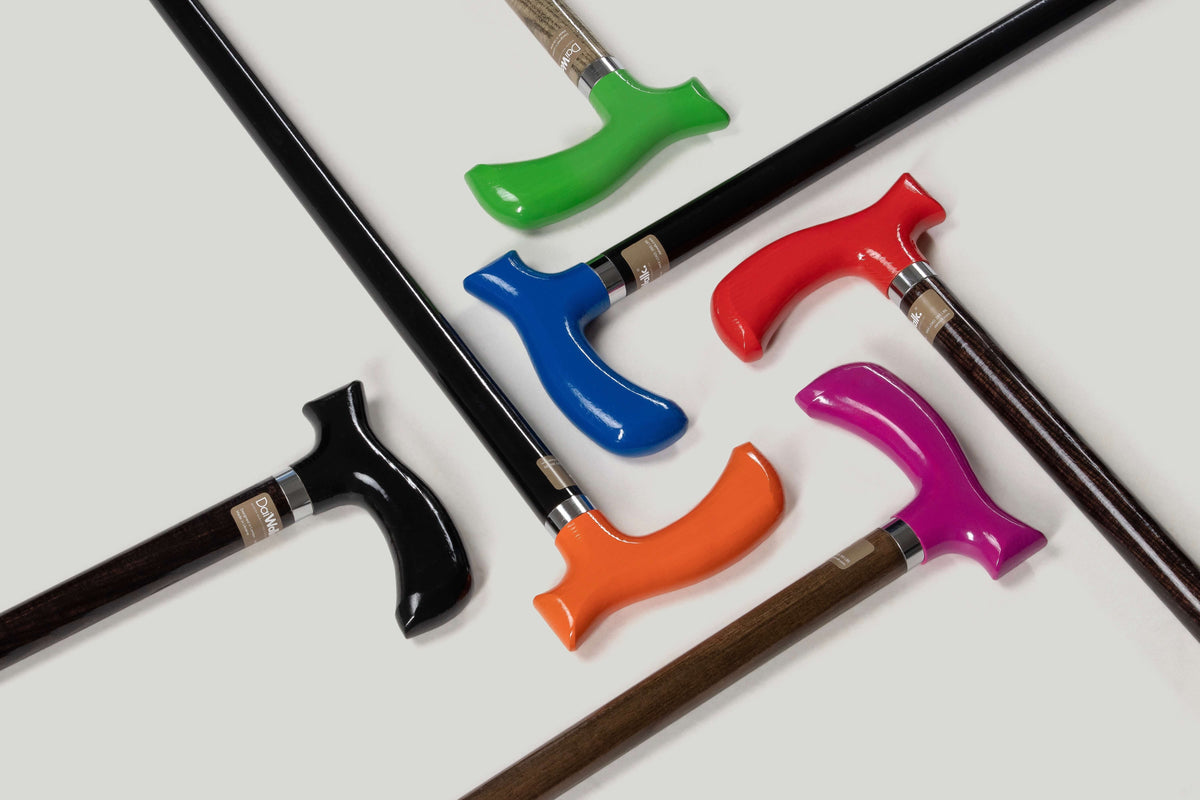

The cane handle is the only part of a walking cane that contacts your body during use. It determines how load transfers from your arm to the cane shaft, how comfortable the cane is over hours of daily use, and whether prolonged use causes secondary hand or wrist problems. Most people choose a cane handle by appearance -- which means most people choose wrong. Here is what the biomechanics and clinical data actually say about each handle type.
The Derby Handle
The derby (curved hook) is the classic walking cane silhouette. The curved neck hooks over the wrist when not in use, making it convenient for temporary placement. However, the derby is biomechanically suboptimal for weight-bearing: the curved neck means the load application point is not directly over the shaft axis. Under load, the handle rotates slightly, which distributes pressure unevenly across the palm and may cause the cane to shift during the push phase of gait. For occasional use and light support, this matters little. For daily use and significant weight-bearing, the rotation under load becomes perceptible and fatiguing.
The T-Bar Handle
The T-bar provides a broader grip surface than the derby and keeps the wrist in a more neutral position. It is the standard-issue handle for most healthcare-supplier walking canes. The primary limitation is pressure distribution: all load is concentrated on the thenar eminence (the fleshy pad at the base of the thumb) and the ulnar side of the palm. DaiWalk testing data shows peak handle pressure with a T-bar at 4.2 N/cm² -- a pressure level that produces discomfort within 20-30 minutes for most users in daily-use scenarios.
The Anatomic Grip
An anatomic (contoured) grip is shaped to match the natural resting contour of the hand: wider at the back of the palm (where the fingers curl), narrower toward the thumb, with a raised finger ledge. This distributes load across the entire palm and fingers rather than concentrating it at the thenar eminence. DaiWalk Anatomic Grip data: peak pressure 1.9 N/cm² versus 4.2 N/cm² for T-bar -- a 55% reduction in peak handle pressure. In our n=112 cohort, 87% of patients with high handle appearance and ergonomics satisfaction reported daily cane use at 18 months, versus 26% with low satisfaction.
The Fritz / Palm Grip
The Fritz or palm grip (also called the shoulder grip or palm knob) presents the cane handle as a rounded knob that sits in the centre of the palm. Load is distributed across the entire palm contact area rather than at the lateral palm as in a T-bar. The Fritz grip is useful for wrist arthritis and rheumatoid hands where lateral pinch and power grip are painful. The limitation is that it provides less directional control during the push phase and is unfamiliar for users accustomed to conventional handles.
Handle Type Comparison
| Handle Type | Peak Pressure | Best Use Case | Main Limitation |
|---|---|---|---|
| Derby | High (concentrated at hook contact) | Occasional use; style; easy hanging | Rotates under load; poor for daily weight-bearing |
| T-bar | 4.2 N/cm² (thenar eminence) | General use; short duration | Pain with prolonged use; not ergonomic |
| Anatomic grip | 1.9 N/cm² (full palm distribution) | Daily use; chronic conditions; sensitive hands | Cannot be hung on forearm; larger profile |
| Fritz / Palm | Low (full palm contact) | Wrist arthritis; rheumatoid; weak grip | Less directional control; unfamiliar feel |
Right-Hand vs Left-Hand Asymmetric Grips
Anatomic and some Fritz grips are handed -- they are shaped specifically for right or left hand. Using an asymmetric grip in the wrong hand negates the ergonomic benefit. When ordering a contoured-grip cane, confirm which hand the cane should be held in (contralateral to the affected leg for most users).
