Section 01
Why Solid Oak?
Most walking cane shafts are aluminium. Aluminium is light, cheap to extrude, and easy to anodise in any colour. It is also, in the hand, completely indifferent — a hollow tube that vibrates against pavement and communicates nothing back to the person holding it.
Oak is different. It is a closed-grain hardwood: dense without being brittle, stiff without being dead, and warm to the touch in a way no metal replicates. A solid oak shaft has a weight that feels deliberate. Over years of use, the surface develops a patina that is unique to the specific grain of that plank and the specific chemistry of the hands that held it.
That is not a poetic argument. It has a structural basis. The Janka hardness of European oak sits at approximately 1,290 lbf — harder than cherry, harder than walnut, and comfortably in the range required for a shaft that will absorb tens of thousands of loading cycles without fatigue cracking. It also machines cleanly and accepts finish well, which matters when the surface finish is the difference between a product that ages gracefully and one that simply wears out.
The decision to use solid oak — rather than a veneered composite, a turned softwood, or a hollow aluminium tube with a wood-look wrap — adds cost, complexity, and lead time to every cane we make. We made it because the alternatives do not hold up. Not in use, and not in comparison.
European oak's hardness rating — the benchmark for structural integrity across repeated loading cycles.
From felling to finished shaft, oak requires a minimum of 18 months of controlled drying before it is dimensionally stable enough to work.
Every DaiWalk oak shaft goes through seven distinct surface treatment stages before it leaves the workshop.
Section 02
Log Selection & Grading
A walking cane shaft is a long, slender object that will carry a significant portion of a person's body weight through thousands of vertical loading cycles. The grain structure of the wood it is cut from is not cosmetic — it is mechanical. A shaft cut with diagonal grain will be weaker along its length. A shaft with large knots will have localised stress concentrations. Both are failure risks that surface finish cannot fix.
We source European oak from certified managed forests, selecting planks from the outer sections of the trunk — the sapwood-adjacent zone where grain tends to run most consistently straight. Every plank is visually graded before it enters the drying process. Anything with significant knots, checks, or sapwood inclusions is rejected at this stage.
What we are looking for specifically is straight grain running parallel to the shaft's long axis, tight and consistent growth rings, and a moisture content that indicates the plank has already begun field-drying at the sawmill. Any plank that passes visual grading is then tested with a pin moisture meter. Anything above 20% moisture content is set aside and retested — it is not rejected, but it is not ready.
Why rejection rate matters. Roughly 30–40% of sourced oak planks do not pass our initial grading. That number seems high until you consider the alternative: a shaft that develops a crack six months into use because the grain ran slightly off-axis and the moisture content was never fully stable. We would rather reject the plank than replace the cane.
Section 03
Drying & Stabilisation
Green oak — freshly cut — contains between 60% and 80% free water by weight. Before it can be shaped or finished, that water has to leave. If it leaves too quickly, the surface dries and contracts before the interior, and the wood checks — develops cracks that radiate from the centre outward. If it leaves in an uncontrolled environment, the plank warps and cups as different sections of grain respond to humidity changes at different rates.
Controlled drying is slow. For shaft-grade material, we target a final equilibrium moisture content of 8–12% — the stable range for interior use in temperate climates. Reaching that figure without surface damage requires a combination of air drying (typically 12–18 months, stacked with spacers to allow airflow on all faces) followed by kiln drying under carefully managed temperature and humidity cycles.
Kiln drying is not simply accelerated air drying. The kiln schedule — the sequence of temperature steps and steam injection — is calibrated to the thickness of the material and the target moisture content. Rush it, and the surface hardens into a shell that traps residual moisture in the core. Get it right, and the wood emerges dimensionally stable, consistent in colour, and ready for machining.
Before any plank moves from drying to the workshop floor, it is measured again with a calibrated moisture meter. Every plank. Not a sample — every plank. The tolerance we allow is tight: 8–12% with no more than 2% variation across the width of the board. Outside that range, the plank returns to conditioning storage.
The patience argument
Why we do not rush the drying stage.
The decision to air-dry for 12–18 months before kiln drying adds significant lead time and storage cost. It also produces a measurably better result. Slow air drying allows the wood to release stress gradually, so the material that enters the kiln is already close to equilibrium — which means the kiln schedule can be gentler, and the resulting shaft is less likely to move after machining.
- Air drying reduces internal stress before kiln schedules begin
- Slower moisture loss means fewer micro-checks in the surface
- Kiln-only drying of thick material carries a higher risk of case-hardening
- Stable material machines more cleanly and holds finish more consistently
Section 04
Turning & Shaping the Shaft
Once the plank is dimensionally stable, it is cross-cut into blanks — rough lengths slightly oversized in both diameter and length to allow for the material removed during turning and the small amount of movement that occurs once the outer skin of the blank is removed and internal stresses are released.

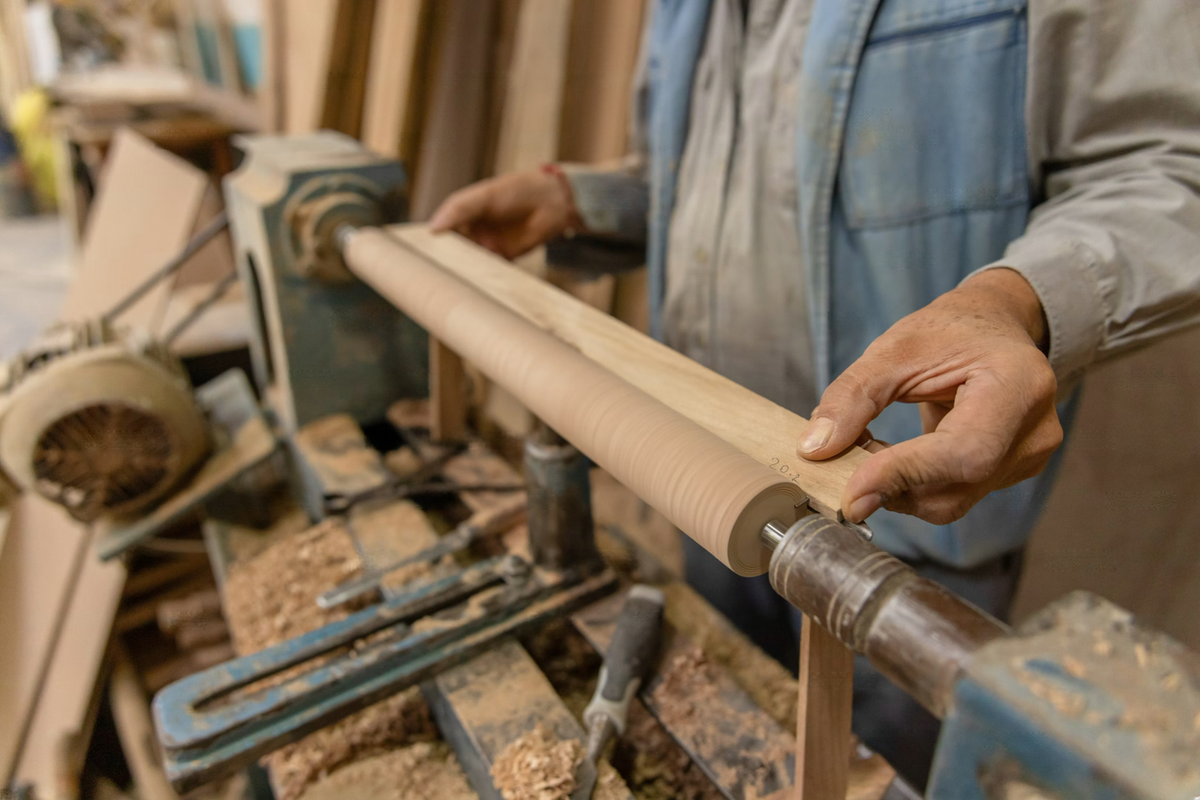

The blanks are then turned on a lathe to the final shaft profile. The DaiWalk shaft is not simply a cylinder. It has a subtle taper — slightly larger at the top where load enters from the handle, slightly smaller toward the tip — that distributes stress more evenly along the shaft's length and gives the finished cane a visual lightness that a constant-diameter profile does not have.
The turning process removes material quickly but leaves behind tooling marks — tiny ridges left by the cutting edge of the lathe tool. These are invisible to the eye at turning speed but become obvious once a finish is applied. The transition from turning to hand-finishing begins here.
After turning, the blank is cut to final length, and the ends are prepared for the ferrule (the metal collar that receives the rubber tip at the base) and the handle attachment at the top. Both of these connections are structural. The ferrule fit in particular matters: a loose ferrule will rock under load, eventually working the wood and creating play in the tip. We machine both ends to tight tolerances and test each fit manually before the shaft moves to finishing.
On the taper. The taper is subtle enough that most users never consciously notice it. But it has a real effect: the shaft feels lighter than its actual weight because the visual mass is concentrated at the top, and it flexes in a way that feels natural rather than rigid — absorbing micro-vibrations from uneven ground rather than transmitting them directly to the wrist.
Section 05
Hand-Finishing in Detail
This is the longest stage and the one that cannot be meaningfully automated. Every shaft goes through seven distinct surface passes before it is ready for the finish coat. What follows is what each of those passes actually involves and why it exists.
Rough sanding — 80 grit
The first pass removes the tooling marks left by the lathe. At 80 grit, the goal is not smoothness — it is removing the ridges left by the cutting edge without creating a new surface that obscures the grain. This pass is done by hand, along the grain axis, to avoid cross-grain scratches that will telegraph through the finish.
Intermediate sanding — 120 grit
The second pass refines the surface left by the 80 grit. At this stage the shaft starts to feel smooth to the back of the hand, though the grain is still slightly open. The transition from 80 to 120 grit is where most of the surface character of the finished piece is set — rushing this step produces a shaft that looks smooth but feels slightly rough under a finish.
Grain raising — water wipe
The shaft is wiped with a damp cloth and allowed to dry. Water-based finishes and some oil finishes cause the grain to raise — tiny wood fibres swell and stand up from the surface. If this happens after the finish coat is applied, the result is a rough, fuzzy surface. Raising the grain deliberately before finishing, then sanding it back off, eliminates the problem.
De-nibbing — 180 grit
Once the grain has dried back down, the raised fibres are removed with a light 180 grit pass. This leaves the surface genuinely smooth in a way that sanding alone before the water wipe does not. The difference is noticeable when the finish is applied: it lays down flat rather than being absorbed unevenly into raised fibres.
First finish coat
The first coat of finish seals the wood and builds the initial surface layer. For DaiWalk oak shafts, we use a hard-wax oil system — not a film-forming lacquer. This matters: a film finish sits on top of the wood and can peel or crack under impact. A penetrating finish goes into the wood, which means it does not chip or peel — it wears, and it can be spot-repaired.
Inter-coat sanding — 240 grit
Between finish coats, the surface is lightly abraded again. The first coat raises any remaining fibres and leaves a slightly rough surface as it cures. Sanding between coats removes these imperfections and ensures the second coat bonds to a mechanically abraded surface rather than a sealed one — which improves adhesion and produces a more uniform final sheen.
Final coat & hand-buff
The second and final coat is applied and allowed to cure fully before the shaft is buffed by hand with a soft cloth. This is where the surface character of the finished cane is determined: the pressure and direction of the buffing strokes affect the final sheen level. We target a low-satin finish — enough sheen to catch the light across the grain, not enough to read as glossy or plastic.
Section 06
Quality Control & Load Testing
A shaft that looks correct is not necessarily a shaft that is correct. Before any finished oak shaft is joined to a handle and tip and packaged as a DaiWalk cane, it goes through a sequence of checks that address both surface quality and structural integrity.
Surface inspection is done under raking light — a single directional light source held at a low angle to the shaft's axis. This is the same technique used in automotive finishing and furniture making: raking light reveals surface ripple, runs, and sanding marks that are invisible under overhead fluorescent lighting. Any shaft with visible surface defects at this stage is stripped and refinished.
Structural testing involves static load and impact tests performed on shafts from each production batch. Static load tests apply a measured downward force along the shaft's axis, held for a fixed duration, and check for permanent deformation or surface cracking. Impact tests simulate the lateral forces that occur when a cane is used on uneven ground — the kind of off-axis loading that is more likely to cause failure than pure vertical load.
What we are actually testing for. Most walking cane failures are not catastrophic sudden breaks — they are progressive weakening events. A crack develops at a stress concentration, propagates slowly under repeated loading, and eventually becomes visible or produces a creak under load. Our testing is designed to surface these failure modes before the cane reaches the user, not to establish a breaking load.
Read: weight capacity & cane engineering →Section 07
Oak vs. Other Shaft Materials
The choice of shaft material is not only a question of aesthetics. Each material has different structural, maintenance, and longevity profiles. This table summarises how solid oak compares to the alternatives most commonly used in walking cane manufacturing.
| Material | Weight | Impact resistance | Finish durability | Repairability | Longevity |
|---|---|---|---|---|---|
| Solid oak | Medium | High — absorbs impact without splintering | High — penetrating finish wears, does not peel | Excellent — spot repair, re-oil | Decades |
| Aluminium alloy | Light | Medium — dents under sharp impact | Medium — anodising can chip | Poor — dents are permanent | 10+ years |
| Carbon fibre | Very light | Low — brittle fracture under lateral impact | Medium — surface clear-coat scratches | Poor — structural damage cannot be repaired | 10+ years (if undamaged) |
| Beech / ash | Medium–heavy | High — similar to oak | Medium — softer grain absorbs finish unevenly | Good | Decades |
| MDF / composite | Heavy | Low — swells and delaminates | Low — veneer lifts at edges | Poor | 3–7 years |
The comparison above explains why oak's medium weight is not a disadvantage in context. The added weight over aluminium or carbon fibre comes with meaningfully better repairability and longevity — and the tactile quality of the material is not something any column in a table captures. A shaft you have carried for ten years does not feel like a shaft you bought ten years ago. It feels like yours.
Section 08
Frequently Asked Questions
What species of oak does DaiWalk use for its shafts?
We use European oak (Quercus robur and Quercus petraea), sourced from certified managed forests in Central Europe. European oak has a tighter, more consistent grain structure than North American white oak or red oak, which is important for a slender shaft profile where grain consistency directly affects structural behaviour.
We do not use tropical hardwoods. Our sourcing criteria require FSC or equivalent chain-of-custody certification for all timber entering production.
Will a solid oak shaft crack or split in use?
Not under normal use conditions, provided the shaft is properly dried and finished — which is the entire point of the process described in this article. A shaft that has reached equilibrium moisture content for its end-use environment and is sealed with a penetrating finish will not crack under normal loading or humidity variation.
What can cause checking is prolonged exposure to extreme conditions: leaving the cane in a car in direct sunlight in summer, or in a wet environment without the finish being maintained. We include care guidance with every DaiWalk cane for exactly this reason.
How do I care for the oak shaft finish over time?
The hard-wax oil finish on DaiWalk shafts is designed to be maintained rather than replaced. As the finish wears — which will happen gradually on the areas of the shaft that contact surfaces most — a light application of the same hard-wax oil product used in production will restore the surface without stripping or recoating.
We recommend a maintenance oil application approximately once a year for a cane in daily use, or whenever the shaft begins to feel dry or the sheen has noticeably reduced on high-contact areas. The process takes about ten minutes and can be done at home with a soft cloth.
Is a solid oak shaft heavier than an aluminium cane? Does that matter?
A finished DaiWalk oak shaft is heavier than an equivalent aluminium tube — typically by 80–120g depending on the length. Whether that matters depends on the user's specific situation. For most people carrying a cane for balance and joint support through a normal day, the weight difference is not perceptible in use; the cane spends most of its time being held or in contact with the ground, not being lifted repeatedly.
For users with significant upper limb weakness or fatigue, aluminium or carbon fibre may be a more appropriate shaft material. We are direct about this: DaiWalk makes the product that makes sense for its intended use. If that is not the right match for your situation, we would rather tell you.
Can the oak shaft be repaired if it is scratched or dented?
Surface scratches in the finish can be addressed with light sanding and a maintenance oil application — the penetrating finish system means there is no film to break through. A scratch that enters the wood itself (rather than just the finish layer) can be sanded back and refinished. This is a significant advantage over film finishes, where any damage to the coating exposes raw wood to moisture.
Dents — compression of the wood fibres from an impact — can sometimes be raised using the wood's own memory: a damp cloth applied over the dented area will cause the compressed fibres to swell back toward their original position. This works well on shallow dents; deep impacts may require local sanding and refinishing.
Why does DaiWalk use a penetrating finish rather than lacquer?
Film-forming finishes (lacquer, polyurethane, catalysed varnish) sit on top of the wood surface as a hard shell. They produce a very even, often high-gloss surface and are highly water-resistant. They also fail in a specific way: once the film is broken — by an impact, a scratch, or edge wear — moisture gets under the film, which causes it to lift and peel. A peeling lacquer is not repairable without stripping back to bare wood and recoating from scratch.
Penetrating finishes go into the wood rather than forming a layer on top. They wear gradually rather than failing suddenly. They can be maintained and spot-repaired. And on oak specifically, they allow the grain and figure of the wood to read clearly rather than being seen through a plastic layer. The aesthetic difference is significant: a penetrating-finished oak shaft looks like wood; a lacquer-finished shaft looks like a photograph of wood.
How long does the hand-finishing process take per shaft?
The active hands-on time across all seven finishing passes is approximately three to four hours per shaft. That figure does not include drying and curing time between stages — a finished shaft takes a minimum of 48 hours from first finish coat to final buff and inspection. This is the main reason solid oak DaiWalk canes are not available for same-week dispatch: production is genuinely time-constrained, not artificially managed.
